422x.06-405-Txx

The 422x Series omni antenna is designed for demanding applications where a durable and high performance colinear is required. The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, and allows tilted beam designs to be effectively employed without large pattern distortions. High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems. The antenna has been designed to withstand lightning strike. Former Skymasts brand product.

View Variations

Where To Buy?

Data Sheet

CE Certification

Other Files

Quickly identify the correct ordering code.

Frequency

Additional Information

Clear

422x.06-405-Txx

Electrical

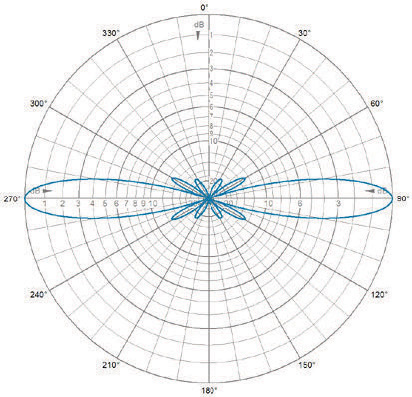

3 dB Beamwidth, E-Plane	16° ±1°
3 dB Beamwidth, H-Plane	Omnidirectional
Antistatic Protection	All metal parts DC-grounded (Connector shows a DC-short)
Frequency	380 – 430 MHz
Gain	6 dBd (8.2 dBi)
Impedance	50 Ω
Lightning Protection	Lightning current handling capability : 200 kA According to EN 62305-1 (Test pulse 10/350 μs)
Max. Input Power	300 W
Model	422x.06-405-Txx
Omni Deviation	< ± 1 dB
Passive Intermodulation	-153 dBc (3rd Order, 2 x Tx @ 43 dBm) (PIM value not guaranteed for N connector version)
Peak Instantaneous Power (PIP)	25 kW
Polarisation	Vertical
VSWR	< 1.5:1

Environmental
Ingress Protection	IP56
Operating temperature range	-40 °C to +70 °C
Survival Wind Speed	300 km/h

Mechanical
Connection(s)	7/16 DIN(f), N(f) or 4.3-10(f)
Dimensions	2900 (l) x 53 (dia.) mm / 114.17 x 2.09 (dia.) in.
Historic Brand	Skymasts
Materials	Antenna Base : Aluminium Shroud : GRP tube 53 mm dia.
Mounting Bracket	2141.01.00.00 (up to 120 mm dia.) (Ordered Separately) ETC-250 (50 to 76 mm dia.) (Ordered Separately)
Mounting Section	Al. tube 63.5 mm dia. x 350 mm long
Weight	Approx. 8.1 kg / 17.86 lb.
Wind Load	230 N (160 km/h)

Model	Product No.	Frequency	Additional Information
6 dBd HD omni antenna, low PIM	4220.06-405-T0	380 – 430 MHz	7/16 DIN(f) ; 0° Electrical Tilt
6 dBd HD omni antenna, low PIM	4220.06-405-T2	380 – 430 MHz	7/16 DIN(f) ; 2° Electrical Tilt
6 dBd HD omni antenna, low PIM	4220.06-405-T4	380 – 430 MHz	7/16 DIN(f) ; 4° Electrical Tilt
6 dBd HD omni antenna, low PIM	4220.06-405-T5	380 – 430 MHz	7/16 DIN(f) ; 5° Electrical Tilt
6 dBd HD omni antenna, low PIM	4220.06-405-T6	380 – 430 MHz	7/16 DIN(f) ; 6° Electrical Tilt
6 dBd HD omni antenna, low PIM	4220.06-405-T8	380 – 430 MHz	7/16 DIN(f) ; 8° Electrical Tilt
6 dBd HD omni antenna, low PIM	4220.06-405-T10	380 – 430 MHz	7/16 DIN(f) ; 10° Electrical Tilt
6 dBd HD omni antenna, low PIM	4220.06-405-T12	380 – 430 MHz	7/16 DIN(f) ; 12° Electrical Tilt
6 dBd HD omni antenna, low PIM	4221.06-405-T0	380 – 430 MHz	N(f) ; 0° Electrical Tilt
6 dBd HD omni antenna, low PIM	4221.06-405-T2	380 – 430 MHz	N(f) ; 2° Electrical Tilt
6 dBd HD omni antenna, low PIM	4221.06-405-T4	380 – 430 MHz	N(f) ; 4° Electrical Tilt
6 dBd HD omni antenna, low PIM	4221.06-405-T5	380 – 430 MHz	N(f) ; 5° Electrical Tilt
6 dBd HD omni antenna, low PIM	4221.06-405-T6	380 – 430 MHz	N(f) ; 6° Electrical Tilt
6 dBd HD omni antenna, low PIM	4221.06-405-T8	380 – 430 MHz	N(f) ; 8° Electrical Tilt
6 dBd HD omni antenna, low PIM	4221.06-405-T10	380 – 430 MHz	N(f) ; 10° Electrical Tilt
6 dBd HD omni antenna, low PIM	4221.06-405-T12	380 – 430 MHz	N(f) ; 12° Electrical Tilt
6 dBd HD omni antenna, low PIM	4223.06-405-T0	380 – 430 MHz	4.3-10(f) ; 0° Electrical Tilt
6 dBd HD omni antenna, low PIM	4223.06-405-T2	380 – 430 MHz	4.3-10(f) ; 2° Electrical Tilt
6 dBd HD omni antenna, low PIM	4223.06-405-T4	380 – 430 MHz	4.3-10(f) ; 4° Electrical Tilt
6 dBd HD omni antenna, low PIM	4223.06-405-T5	380 – 430 MHz	4.3-10(f) ; 5° Electrical Tilt
6 dBd HD omni antenna, low PIM	4223.06-405-T6	380 – 430 MHz	4.3-10(f) ; 6° Electrical Tilt
6 dBd HD omni antenna, low PIM	4223.06-405-T8	380 – 430 MHz	4.3-10(f) ; 8° Electrical Tilt
6 dBd HD omni antenna, low PIM	4223.06-405-T10	380 – 430 MHz	4.3-10(f) ; 10° Electrical Tilt
6 dBd HD omni antenna, low PIM	4223.06-405-T12	380 – 430 MHz	4.3-10(f) ; 12° Electrical Tilt
