BPF 2/4-…

The BPF 2/4-… is a 4-helical resonator band-pass filter with aperture coupling between the resonators.
This filter can be used as a preselector to protect a receiver from interference from transmitters outside the band-pass limits.
The BPF 2/4-C (C = cable) can be installed directly into the PRO-AR4G-N, PRO-AR8G-N and PRO-AR16G-N receiver multicouplers as a preselector.
When installed in the output of a transmitter, the BPF 2/4 reduces spurious signals.
The BPF 2/4-… is adjustable over the range 144 – 175 MHz.
Very compact due to use of helical resonators.
Careful choice of materials ensures reliable performance over a wide temperature range.
Extruded aluminium sections, steel racks and coaxial cables and connectors with teflon insulation ensure good mechanical strength.
The filter is coated with black vinyl to prevent corrosion.

Data Sheet

Other Files

Frequency

Additional Information

Clear

BPF 2/4-…

Environmental
Operating temperature range	-30 °C to +60 °C

Mechanical
Connection(s)	N(f) (BNC(f), TNC(f), UHF(f) or SMA(f) on request)

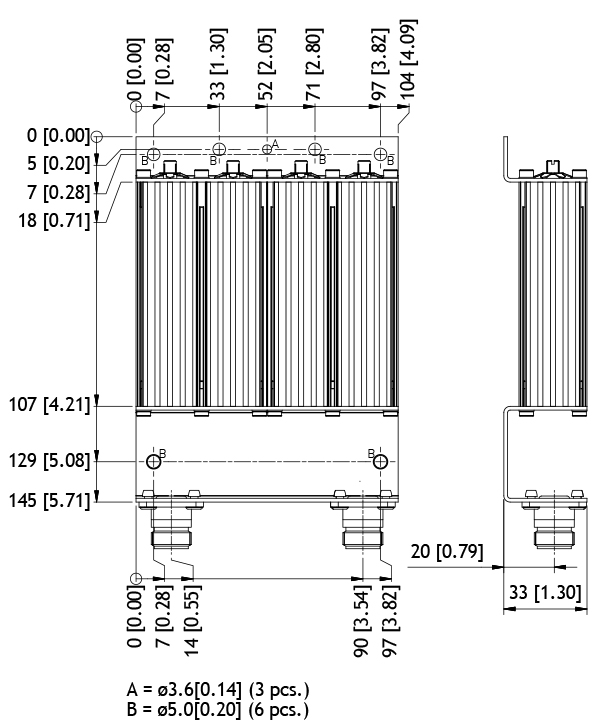

Dimensions	165 x 104 x 33 mm / 6.5 x 4.1 x 1.3 in.
Historic Brand	Amphenol Procom
Weight	Approx 0.5 kg / 1.10 lb.

Model	Product No.	Frequency	Additional Information

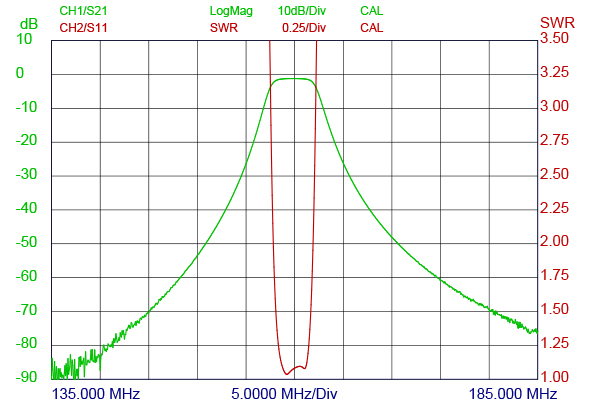

BPF 2/4-2-N(f)	200000845	2 MHz	N(f)

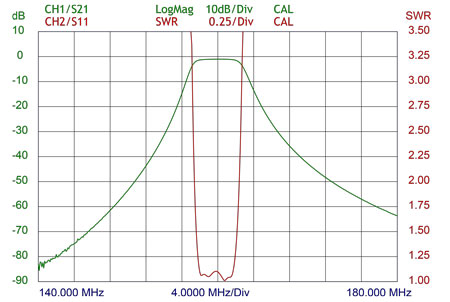

BPF 2/4-4-N(f)	200000816	4 MHz	N(f)

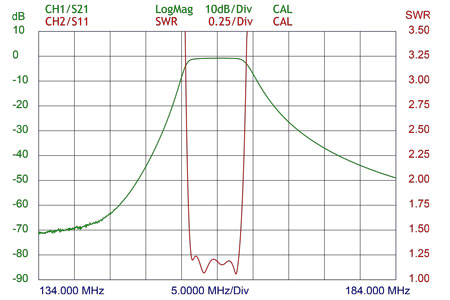

BPF 2/4-6-N(f)	200002090	6 MHz	N(f)

This product doesn’t have any downloadable files yet.
