PRO-HDAR150-2

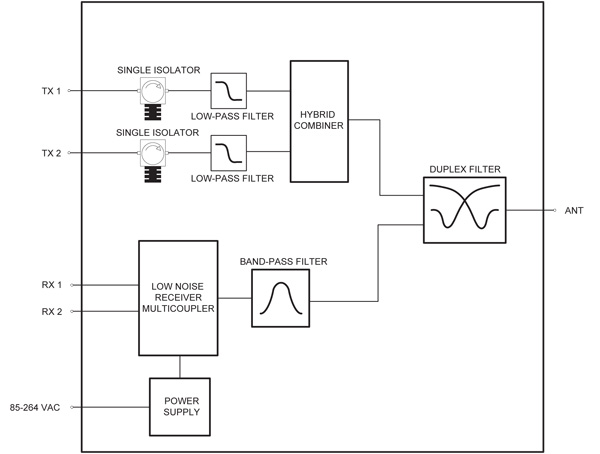

- An integrated single tray combining solution housing a 2-channel hybrid Tx hybrid combiner, duplex filter, active 2-channel Rx multicouplers and preselector.
- Minimal 19″ rack space required – only 2 HU.
- Built-in power supply 115/230 VAC.
- Compatible with digital 6.25 kHz channel spacing.
- Single Tx isolators fitted as standard.
- Please specify all Tx/Rx frequencies when ordering.
- Please Note:
Power cable is not included, must be ordered separately, see Accessories.
Data Sheet
Other Files
| Electrical | |
| Ant-Tx Isolation | > 40 dB @ 25 °C |
|---|---|
| Frequency | l : 136 – 156 MHz h : 152 – 175 MHz |
| Gain | Rx PATH : 1 dB ±1 dB (factory set) |
| Impedance | 50 Ω |
| Insertion Loss Tx Path | < 5.0 dB |
| Isolation Rx on Frequency Tx | Tx – Tx spacing < 0.5 MHz : > 80 dB Tx – Tx spacing > 0.5 MHz : > 60 dB |
| Isolation Rx-Rx | > 20 dB |
| Isolation Tx on Frequency Rx | Rx – Rx spacing < 0.5 MHz : > 80 dB Rx – Rx spacing > 0.5 MHz : > 60 dB |
| Isolation Tx-Tx | > 70 dB |
| LNA Noise Figure | < 3.5 dB |
| Max. Input Power | 50 W (per channel) |
| Max. Tx-Tx Spacing, Δ Tx | 1.5 MHz |
| Min. Tx-Rx Spacing | 4 MHz |
| Model | PRO-HDAR150-2 … |
| No. of channels | 2 |
| VSWR | ≤ 1.5:1 |
| Environmental | |
| Operating temperature range | -30 °C to +60 °C |
|---|---|
| Mechanical | |
| Connection(s) | N(f) |
|---|---|

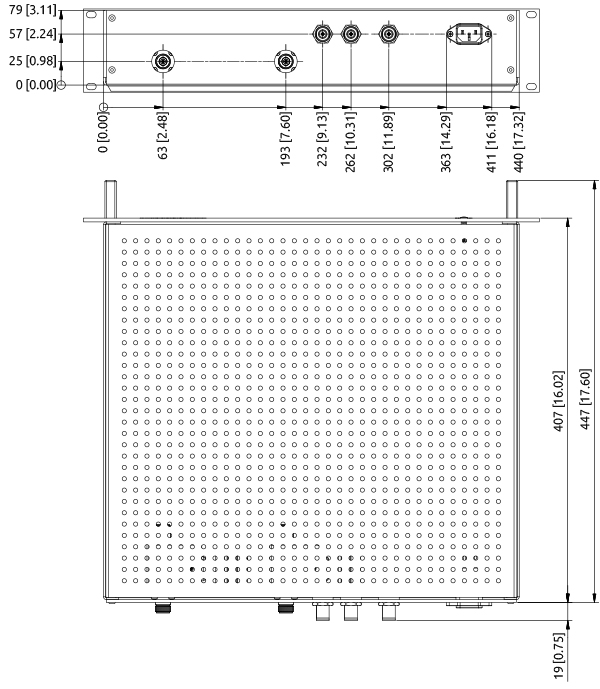

| Dimensions | 19″ x 2 HU 483 x 89.9 mm 19.02 x 3.54 in. – see drawing for depth of tray |
| Historic Brand | Procom |
| Weight | Approx. 9.1 kg / 20.06 lb. |
