PRO-HDAR450-3
- An integrated single tray combining solution housing a 3-channel hybrid Tx hybrid combiner, duplex filter, active 3-channel Rx multicouplers and preselector.
- Minimal 19″ rack space required – only 2 HU in a 19″ rack.
- Built-in power supply suitable for 115/230 VAC.
- Compatible with digital 6.25 kHz channel spacing.
- Single Tx isolators fitted as standard.
- Please specify all Tx/Rx frequencies when ordering.
- Please Note:
Power cable is not included, must be ordered separately, see Accessories.
Data Sheet
Other Files
| Electrical | |
| Ant-Tx Isolation | > 40 dB @ 25 °C |
|---|---|
| Frequency | L : 380 – 400 MHz H : 406 – 470 MHz |
| Gain Rx | 1 dB ±1 dB (factory set) |
| Impedance | 50 Ω |
| Insertion Loss | 7.4 dB |
| Isolation Rx-Rx | > 20 dB |
| Isolation Tx – Rx | Tx – Tx spacing < 0.5 MHz : > 85 dB Tx – Tx spacing > 0.5 MHz : > 65 dB |
| Isolation Tx-Tx | > 70 dB @ 25 °C |
| LNA Noise Figure | < 3.5 dB |
| Max. Input Power | 50 W (per channel) |
| Model | PRO-HDAR450-3 |
| No. of channels | 3 |
| Spacing Tx-Rx | ≥ 5 MHz |
| Spacing Tx-Tx | ≤ 2 MHz |
| VSWR | ≤ 1.5:1 |
| Environmental | |
| Storage temperature range | -30 °C to +60 °C |
|---|---|
| Mechanical | |
| Connection(s) | N(f) |
|---|---|

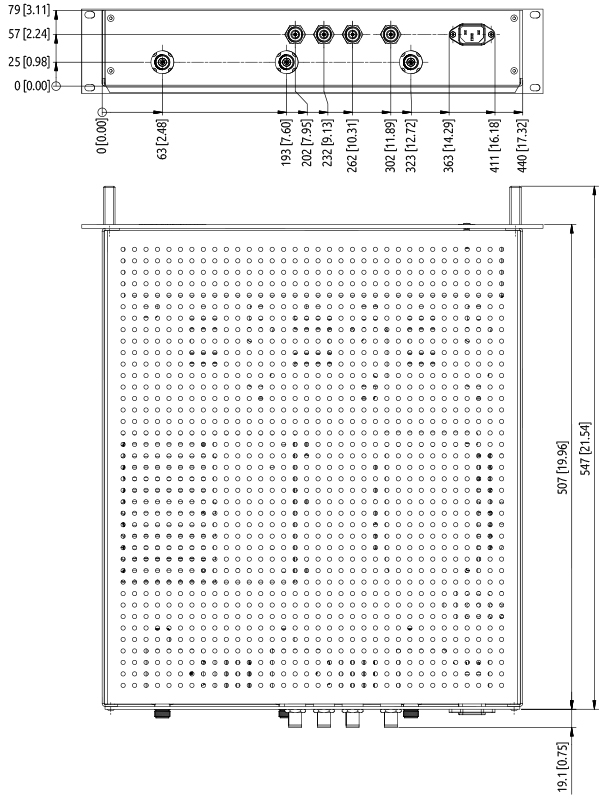

| Dimensions | 19″ x 2 HU 483 x 89.9 mm 19.02 x 3.54 in. – see drawing for depth of tray |
| Historic Brand | Amphenol Procom |
| Weight | Approx. 9.6 kg / 21.16 lb. |
