ProLink

  • The ProLink 6×6 provides antennas for multiple technologies in fixed or mobile end-point device applications, using either Cellular or WIFI connectivity.
  • Ideal for Industrial robotics and telemetry, smart metering, autonomous vehicles, smart cities and automated parking, backup and remote terminal data connections.
  • In-built 6×6 MiMo antenna for use with LTE/4G (617 – 960 MHz and 1710 – 3800 MHz) or WIFI 6E 2.4/4.9-7.2 GHz.
  • Optional single  GNSS antenna for GPS L1, Glonass, Beidou and Galileo.
  • The ProLink covers 4G, GNSS inc. 5G cellular bands, WIFI 2.4/5.8 and 7.2 GHz.
  • Full hemispherical coverage for the GNSS antenna.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circular Polarization.
  • 3 – 15 V DC for GNSS supply.
  • Additionally, up to 6×6 MiMo WIFI 6E & WIFI 7 (2.4/4.9-7.2 GHz).
  • Can be configured as 6-in-1all the way up to 13-in-1.
  • DC supply via GNSS RF-connector.
  • ECE R118.02 approved cable.
  • IP69 Ingress protection.
  • IK10 rated enclosure.
Where To Buy?
Data Sheet
CE Certification

Other Files

ProLink
Electrical
Antenna Type Mobile Disk Style Antenna
EMC Full protection (EN 301 489-1)
Frequency 1.7 – 2.7 GHz
Impedance 50.00000000Ω
Isolation > 8 dB
Max. Input Power 25.00000000W
Model ProConnect Plus
Polarisation Vertical
VSWR < 3.0:1
Environmental
Impact Protection IK10
Ingress Protection IP69
Operating temperature range -50 °C to +75 °C
Mechanical
Antenna Mount Type Hole mount or suface mount with adhesive pad
Colour Black (RAL 9005) or White (RAL 9010)
Compliance ECE R118.02 approved cables
Connection(s) RG316 / RG178, SMA(m) (all antennas)

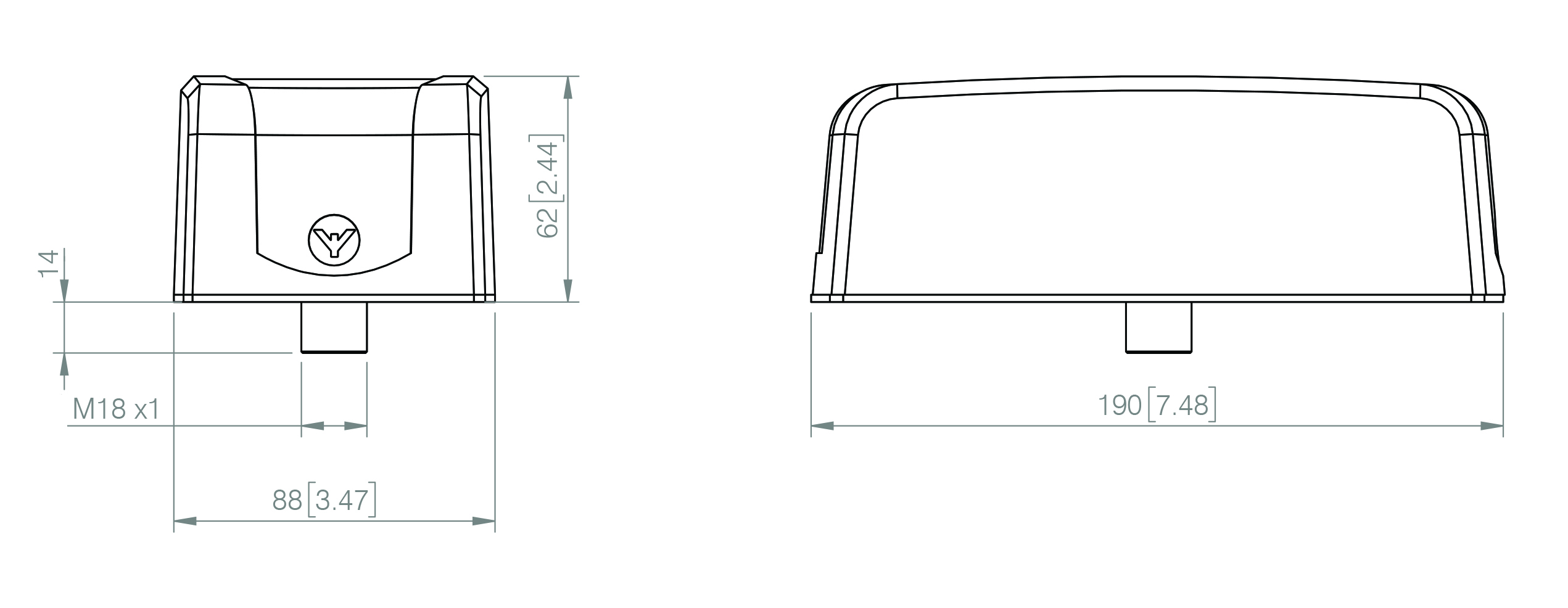

Dimensions 190 x 88 mm / 7.48 x 3.46 in.
Height 60 mm / 2.36 in.
Installation Torque 4 ±0.5 Nm
Materials ASA, Zamak 5
Mounting 18.5 mm / 0.8 in. dia. hole
Weight Approx. 1 kg / 2.20 lb.
